FPV Drone Thermal Imager Camera Analog CVBS/Digital USB 4/10mm Lens 12um Micro Camera Module High Definition Night Vision Camera
FPV Drone Thermal Imager Camera Analog CVBS/Digital USB 4/10mm Lens 12um Micro Camera Module High Definition Night Vision Camera
No se pudo cargar la disponibilidad de retiro
FPV Drone Thermal Imager Camera Analog CVBS/Digital USB 4/10mm Lens 12um Micro Camera Module High Definition Night Vision Camera

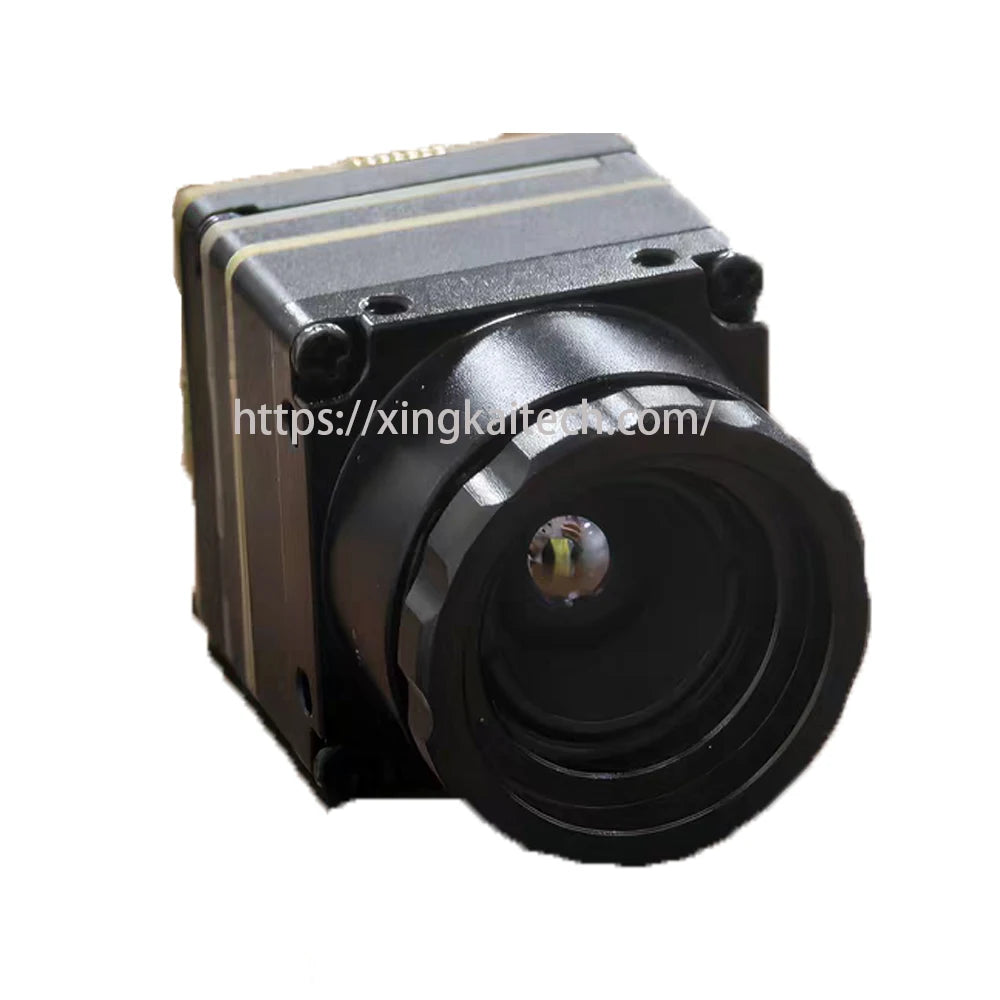

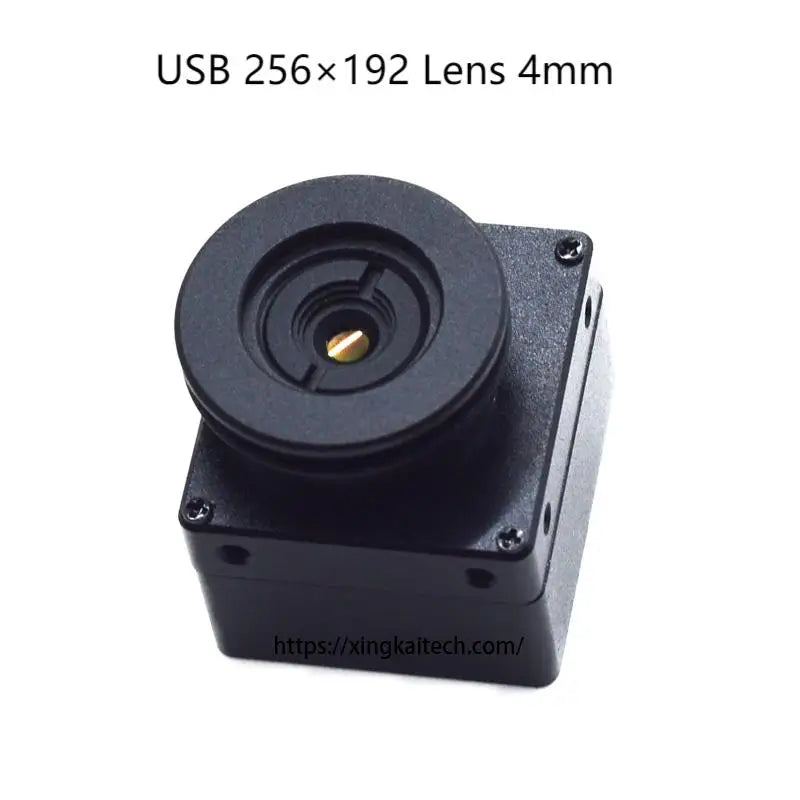

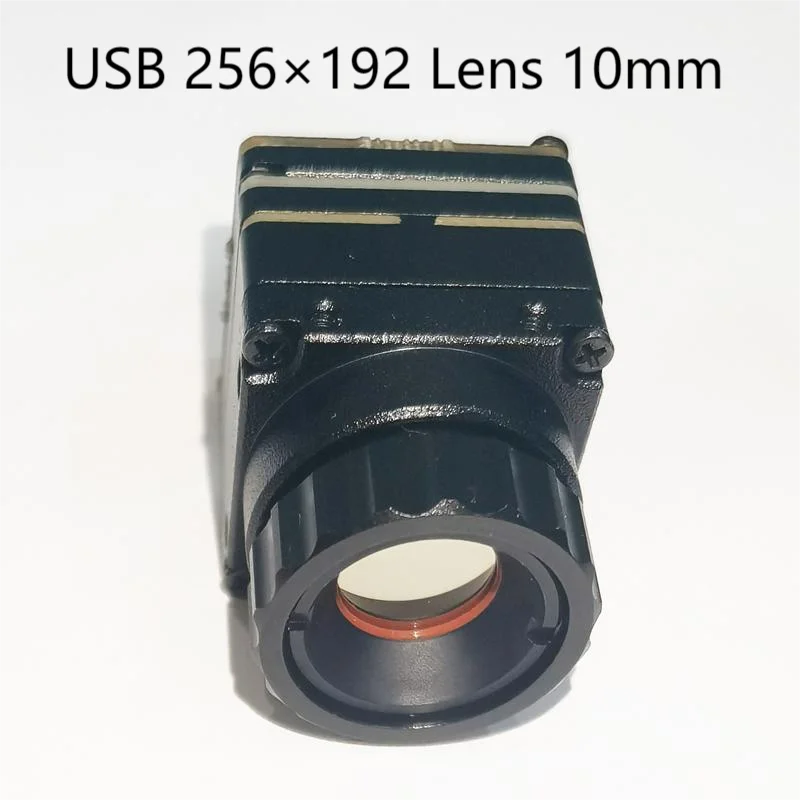

The XK-C130 4/10mm is a miniature FPV analog CVBS/Digital USB thermal camera that combines elements of an HD and drone video camera and is designed for RC FPV cars, aircraft, race cars and drones.

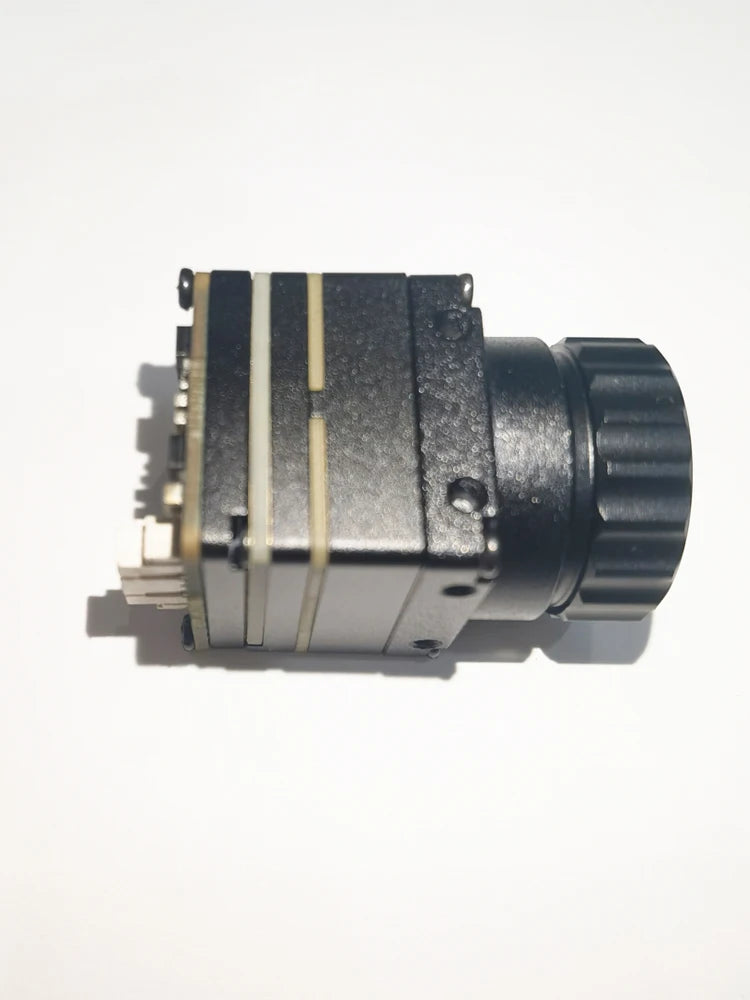

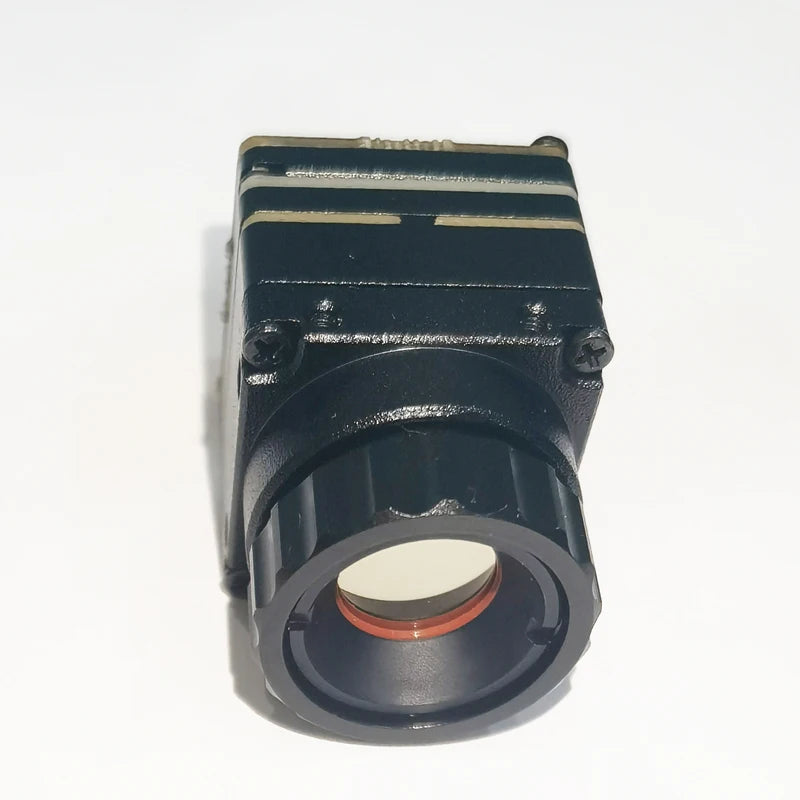

The XK-C130 camera is small and easy to install, and the lens body design makes it easy to mount on an airplane. Not only does it have all the features of a tiny drone camera, it also has thermal imaging to provide clear images in low light or total darkness. The camera also comes with a lens cap that effectively protects the lens from dust and dirt.
This camera has a very high resolution,256×192,resolution, it provides extremely high quality images. The open shutter and adjustable focus function allows you to customize the effect as needed to meet different shooting needs. Most importantly, the output resolution is very high, the image quality is clear, can capture every moment.
Translated with DeepL.com (free version)
Model |
XK-C130 |
||
Specificationparameters |
|||
Movementparameters |
Detectortype |
Vanadium oxide uncooledinfraredfocalplanedetector |
|
Resolution |
256×192 |
||
PixelPitch |
12um |
||
Spectral Band |
8-14um |
||
NETD |
≤40mK |
||
shutter |
Automatic shuttercorrection |
||
Lens Parameters |
focusing |
Adjustable focus |
|
aperture |
1.0 |
||
Lens millimeters |
4mm |
10mm |
|
FOV(H*V) |
40.1°×30.3° |
17.6°×13.2° |
|
Detectiondistance |
people |
440m |
1000m |
vehicle |
1051m |
2389m |
|
Recognitiondistance |
people |
110m |
250m |
vehicle |
263m |
597m |
|
function |

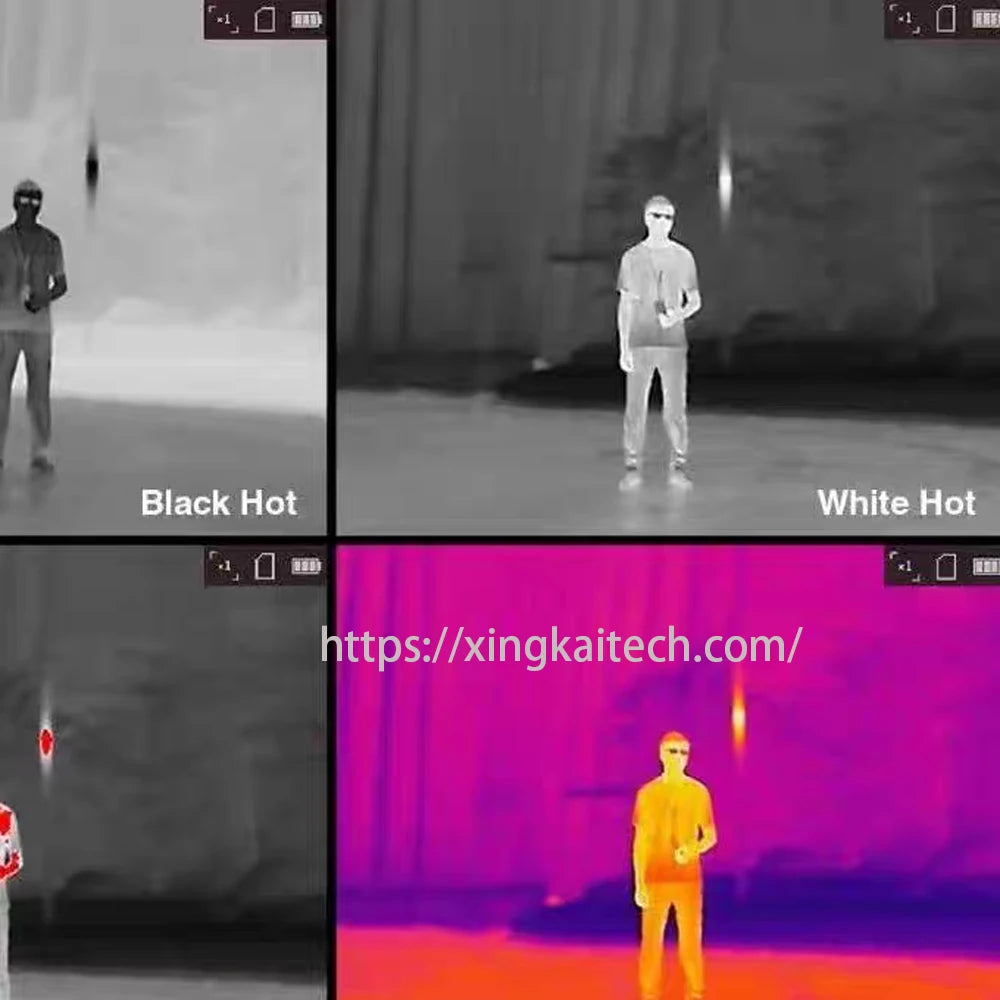

Pseudocolor |
Whiteheat |
|
Standard |
PAL |
||
typeofoutput |
CVBS/USB |
||
Powersupplyvoltage |
4.5-18V |
||
power |
600mw |
||
working temperature |
-40℃~+80℃ |
||
Storage temperature |
-50℃~+85℃ |
||

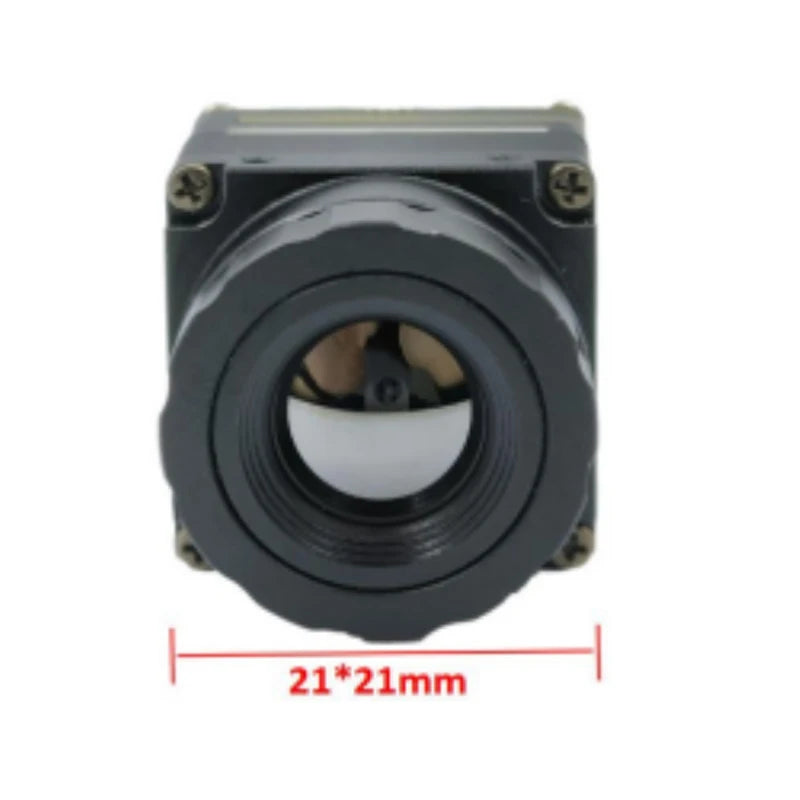

size |
21*21MM |
||
weight |
22g |
